Component
Information

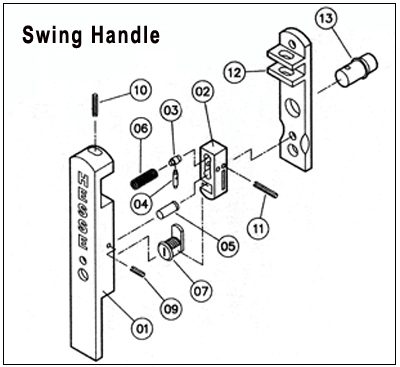

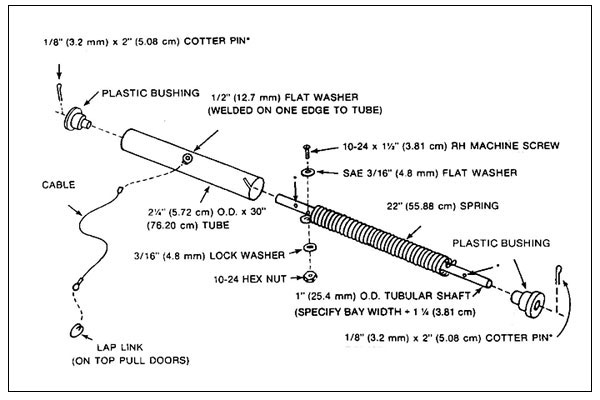

Counter Balance
Hesse
Swing Handle
Part
Number 5074S
01 |
5074S |
Lock
Handle Housing |
02 |
5074S-45353 |
Lock Handle
Wedge Block |
03 |
5074S-45352 |
Lock Handle
Latch Button |
04 |
5074S-45350 |
Lock Lever |
05 |
5074S-45349 |
Lock Handle
Button, Plastic |
06 |
5074S-45351 |
Lock Spring |
07 |
07 |
Lock
Cyclinder 5075HE-71 & 5075HE-65 Keyed |
08 |
08 |
Lock
Cyclinder Key 5112-71 & 5112-65 |
09 |
5074S-45356 |
Pin Roll 3/16
x 3/4 |
10 |
5074S-45347 |
Pin Roll 5/16
x 1 1/2 |
11 |
5074S-125X1 |
Pin Roll 1/8
x 1 |
12 |
5074S-45346 |
Lock Handle,
MTG Base |
13 |
5074S-45348 |
Lock Sprocket
Post |

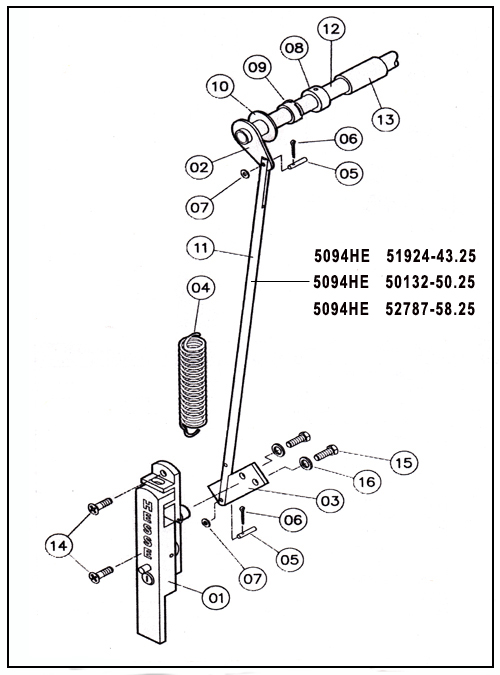

Swing
Handle Conversion
Kit Diagram
Part
Number 5074S (Kit)
01 |
|
Lock
Handle Assy, Lever (Kit P/N 66925 -1 EA.) |
02 |
5074S-50131 |
Lock Cam, UPR
(Kit P/N 66925 - 1 EA.) |
03 |
5074S-50130 |
Lock Cam, LWR
(Kit P/N 66925 - 1 EA.) |
04 |
5074S-
50133 |
Lock Spring, Return
(Kit P/N 66925 - 1 EA.) |
05 |
5074S-50137 |
PIN, Clevis 1/4
x 3/4 (Kit P/N 66925 - 2 EA.) |
06 |
5074S-19644 |
PIN, Cotter 3/32
x 1 (Kit P/N 66925 - 2 EA.) |
07 |
5074S-50381 |
Washer, 3/16 Flat
USS Pltd (Kit P/N 66925 - 2 EA.) |
08 |
5074S-63899 |
Lock Pipe Collar,
1-1/16 ID (Kit P/N 66925 - 2 EA.) |
09 |
5074S-19451 |
Bushing, Pillow
Block (Kit P/N 66925 - 2 EA.) |
10 |
5074S- 09663 |
Washer, 1 Flat
SAE (Kit P/N 66925 - 2 EA.) |
11 |
|
Lock Rod x 50-1/4
(Kit P/N 66925 - 1 EA.) |
12 |
5094HE-66025 |
Pipe, BLK STL, 3/4
SCH 40 (Kit P/N 66925) |
13 |
5094HE-66025 |
Lock Pipe Splice
(Kit P/N 66925 - 1 EA.) |
14 |
|
Screw, 5/16-18 x
1 FH PH (Kit P/N 66925 - 2 EA.) |
15 |
5074S-09334 |
Screw, 5/16-18 x
3/4 HHCS (Kit P/N 66925 - 2 EA.) |
16 |
5074S-3125W |
Washer, 5/16 Lock
(Kit P/N 66925 - 2 EA.) |
17 |
|
Lock
Spring, Attach Plate (Kit P/N 66925 - 1 EA.) |

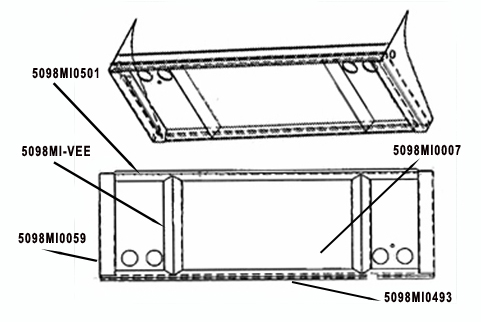

Mickey
Bumper Trailer Non-Removable
5098 MI-VEE |
Bumper VEE Standard 96" Wide |
5098 MI0007 |
Bumper Plate Standard 96" Wide |
5098 MI0059 |
Bumper End Assembly
Standard 96" Wide |
5098
MI0493 |
86 1/2" Bumper Bottom
FT. |
5098
MI0501 |
95" Bumper Top FT. |

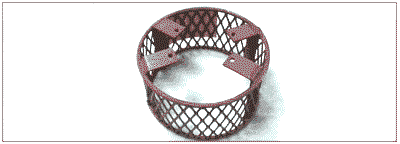

Trailer
Wheelhouse Basket Step
For
Wheelhouse Step Product 5101RE-TRWS

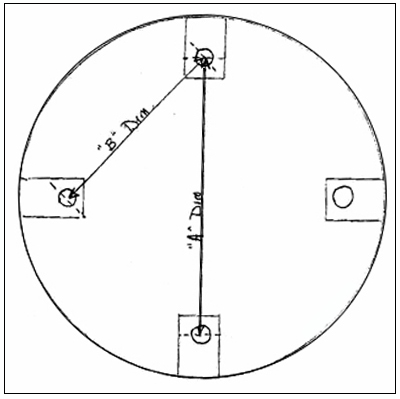

Custom Made:
Give Hole Dementoin of A and B Tabs and Hole Size

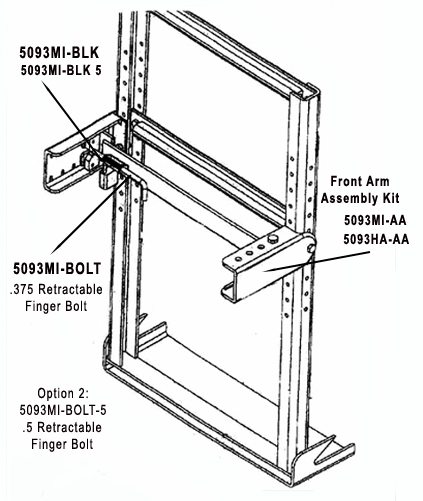

Mickey Dolly
Cart Rack
Rear
Single Dolly Cart Carrier For 5093 MI-SGL
Hesse/Parco

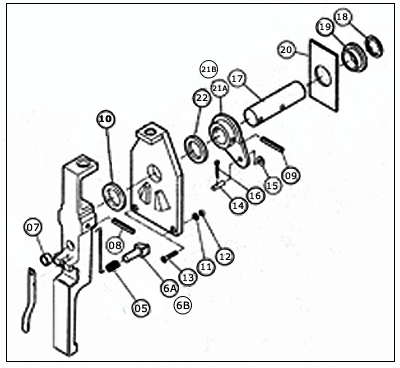

Pad Lock Handle
Diagram
For Lock Handles
| 5074PAR-D Driverside Padlock Handle W/Plate |
5074 PAR-P Passenger Side Padlock Handle W/Plate |
05 |
Lock Target Spring |
06A |
Lock Target S/S |
06B |
Lock Targe O/S |
07 |
Bushing Target |
08 |
Pin Spring |
09 |
Pin Spring |
10 |
Bushing Teflon |
11 |
Washer 1/4 Lock |
12 |
Nut 1/4-20 HEX |
13 |
Screw 1/4-20 x 1 FH SS MACH |
14 |
Pin, Clevis 1/4 x 3/4 |
15 |
Washer, 3/16 Flat USS PLTD |
16 |
Pin, Cotter 3/32 x 1 |
17 |
Rod, STL-PLTD |
18 |
Washer, Lock-Tooth |
19 |
Bushing, Teflon |
20 |
Bracket, Lock-Hand |
21A |
Lock Cam Assembly S/S |
21B |
Lock Cam Assembly, C/S |
22 |
Washer, Teflon |

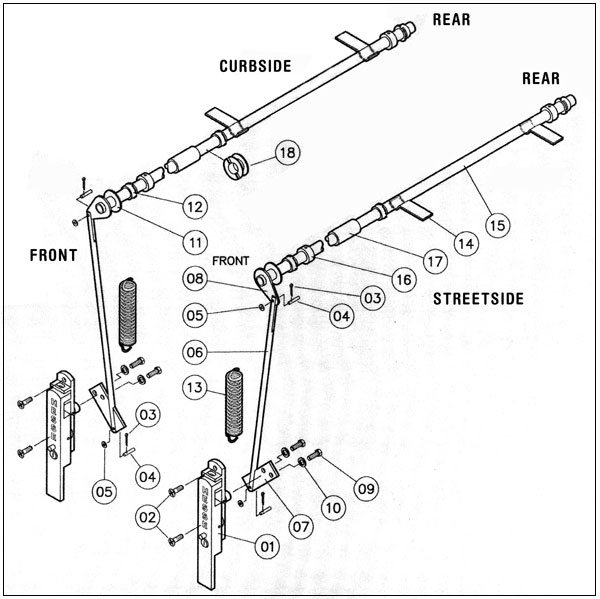

Swing
Handle
System Diagram
Part
Number 5074S-65 and 5074S-71
01 |
Door Lock, Lever Handle |
02 |
Screw, 5/16-18 x 1 FH PH |
03 |
Pin, Cotter 3/32 x 1 |
04 |
Pin, Clevis 1/4 x 3/4 |
05 |
Washer, 3/16 Flat USS PLTD |
06 |
Lock Rod x 50 1/4 |
07 |
Lock Cam, LWR |
08 |
Lock Cam, UPR |
09 |
Screw, 5/16-18 x 3/4 HHCS |
10 |
Washer, 5/16 Lock |
11 |
Washer, 1 Flat SAE |
12 |
Bushing, Pillow Block |
13 |
Lock Spring, Return |
14 |
Lock Cam, Door |
15 |
Pipe, BLK STL, 3/4 SCH 40 |
16 |
Lock Pipe Collar, 1 1/16 ID |
17 |
Lock Pipe Splice |
18 |
Counterbalance Pulley, Half |
PullDown

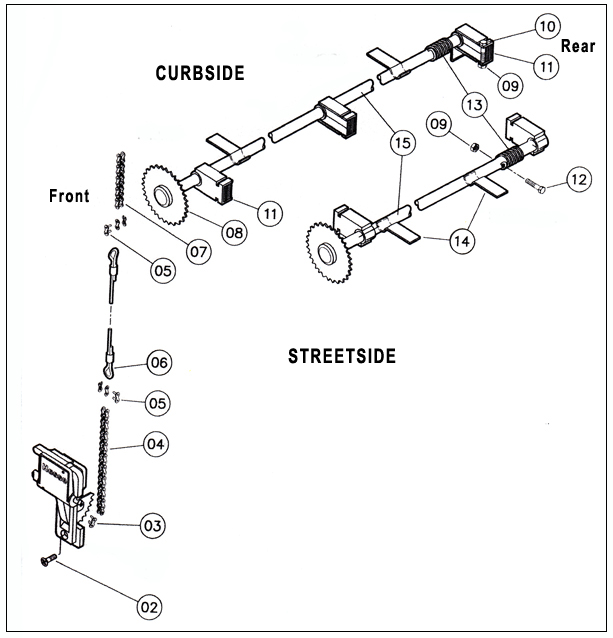

Chain Lock Handle System Diagram (prior to '87)
System
Diagram For 5074HED
02 |
5074S-09388 |
Screw, 5/16-18
x 1 FH PH |
03 |
5074HED-19466 |
Chain #35
Master Link |
04 |
5074HED-19465 |
Chain #35 RC Roller
3/8 Pitch x 6" |
05 |
5074HED-22326 |
Chain #35 Offset
Link |
06 |
5074HED-25337 |
Lock Cable
Assy x 40; or x 42; or x 48 |
07 |
5074HED-19468 |
Chain #35 RC Roller
9 1/2 link x 7" |
08 |
5074HED-9446 |
Lock Sprocket,
UPR |
09 |
|
Nut, 1/4
- 20 Hex |
10 |
|
Screw, 1/4
- 20 x 2 -1/2 HHC |
11 |
5094HE6LA-31226 |
Pillow Block
ASSY |
12 |
|
Screw, 1/4 - 20
x 1 1/2 HHCS |
13 |
5094HE-19454-2
5094HE-19454-3 |
Lock Pipe
Spring RET |
14 |
5094HED-161016 |
Lock Cam
Door |
15 |
|
Pipe, BLK
STL, 3/4 SCH 40 |

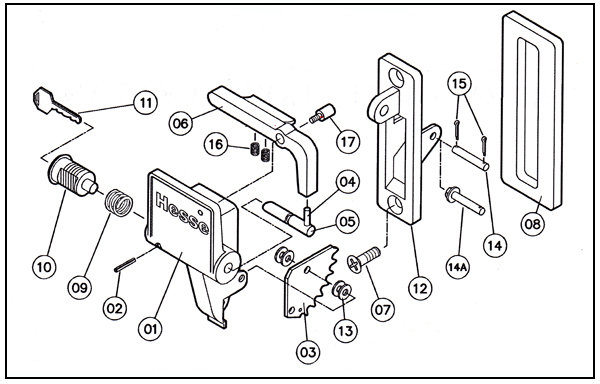

PullDown
Chain Lock Diagram of 5074HED
00 |
|
Lock Handle, Push-Up (Prior to '87) |
00 |
5074 HEDD |
Lock ASSY. Push-Up S/S |
00 |
5074 HEDP |
Lock ASSY. Push-Up C/S |
01A |
5074 HEDD |
Lock Handle S/S |
01B |
5074 HEDP |
Lock Handle C/S |
02 |
5074 HAPIN |
Pin Roll 1/8 x 7/8 |
03 |
5074HED-19448 |
Lock Sprocket, LWR |
04 |
5074HED-38381 |
Pin Roll 3/16 x 1 |
05A |
5074HED-22015 |
Lock Latch Pin S/S |
05B |
5074HED-22015-1 |
Lock Latch Pin C/S |
06A |
5074HED-29777 |
Lock Trigger REL Latch S/S |
06B |
5074HED-29778 |
Lock Trigger REL Latch C/S |
07 |
5074S-09388 |
Screw 5/16-18 x 1 FH PH |
08 |
|
Lock SHIM PLT
3 x 8 |
09 |
5074HA-SPG |
Lock CYL Spring |
10 |
5075HA-501-TD-510 |
Lock CYL W/Key |
11 |
5075 |
Lock CYL Key (LL71) (LL65) |
12 |
|
Lock Plate Casting,
BRS, MACH P/A |
13 |
|
Washer 1/4 Flat
USS |
14 |
|
Pin Roll 1/4 x
1 1/2 |
14A |
|
Pin Clevis, Lock
Handle Pivot (OS) |
15 |
|
Pin Cotter 3/32
x 1 |
16 |
|
Lock Trigger Spring |
17 |
|
Screw 15-24 x
1/2 Allen Shoulder |
